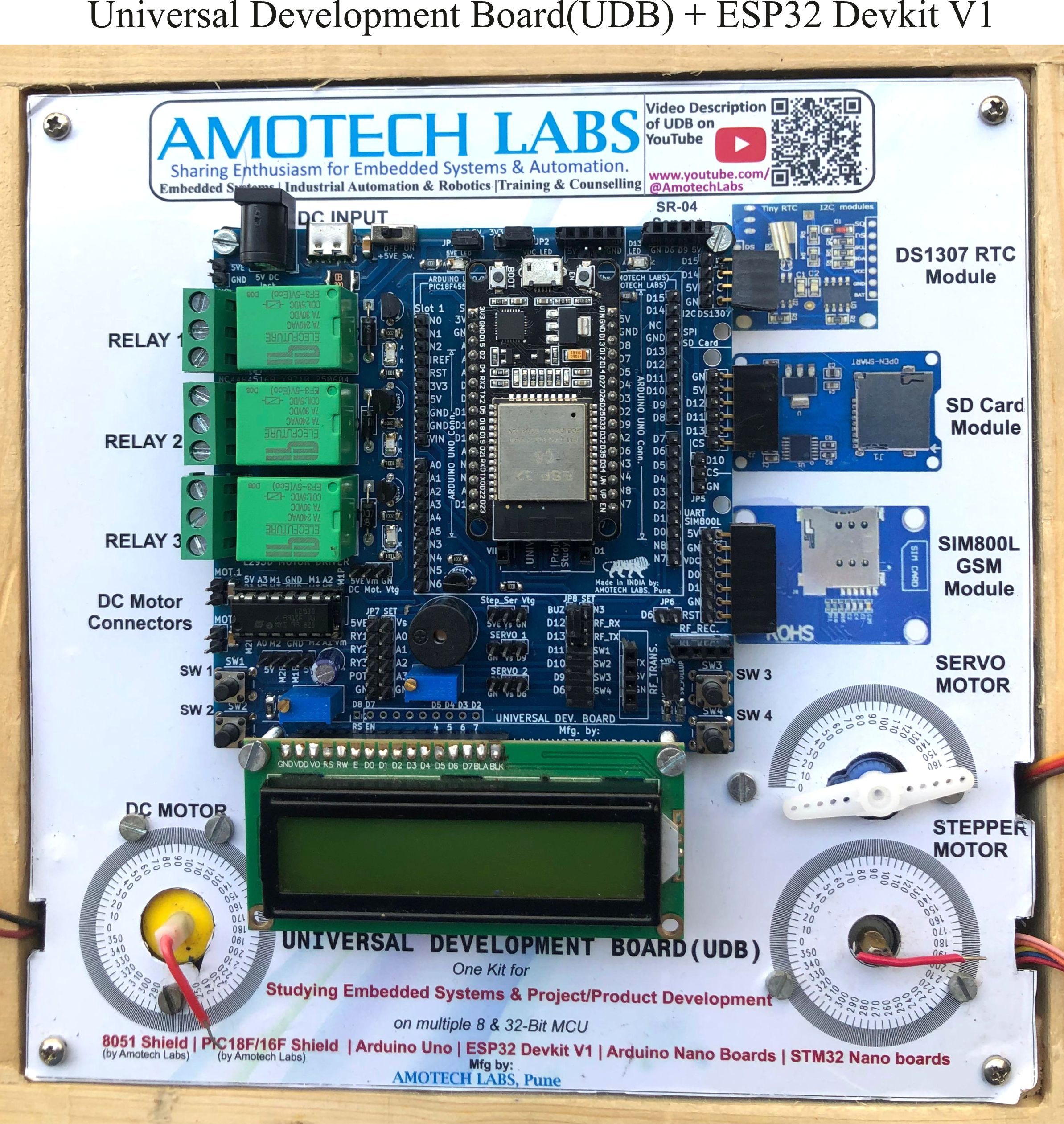

Universal Development Board(UDB) Kit [One Development Board for 8051, PIC18Fxxx, ESP32,STM32 and Arduino Microcontrollers]

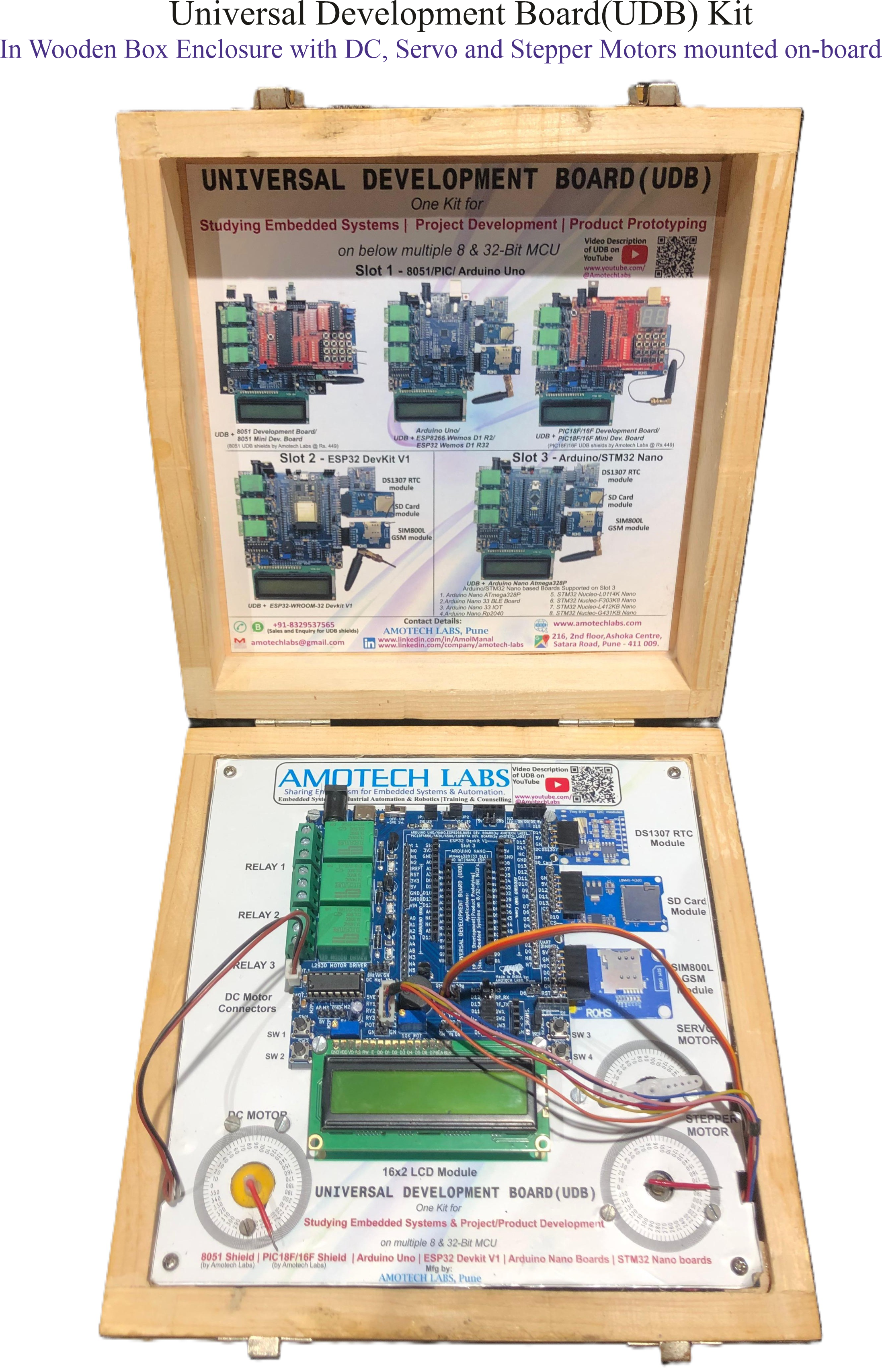

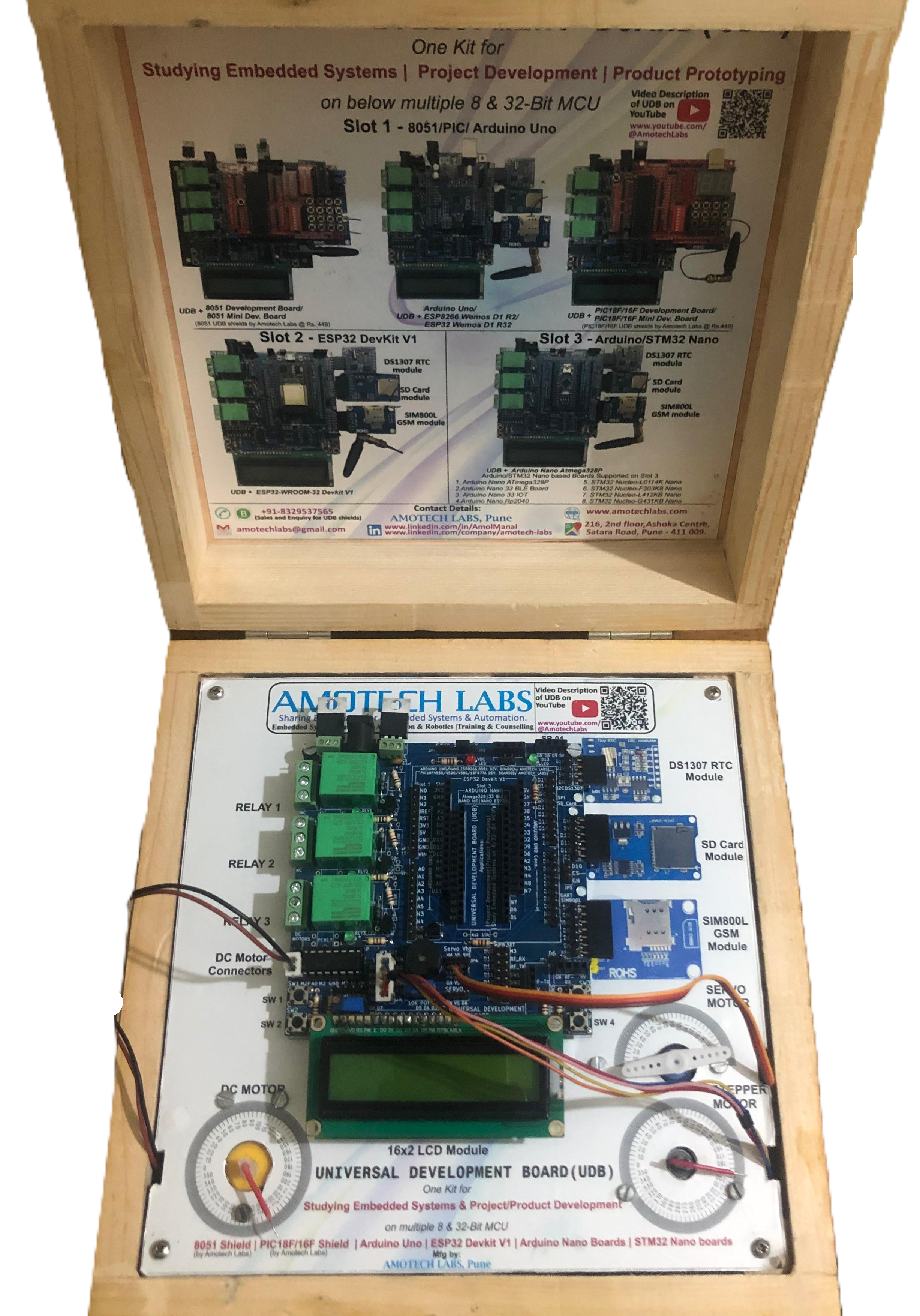

One UDB kit enclosed in Wooden Box for Multiple MCU's - 8051, PIC18F/16F, ESP32, Arduino Nano, STM32, RP2040

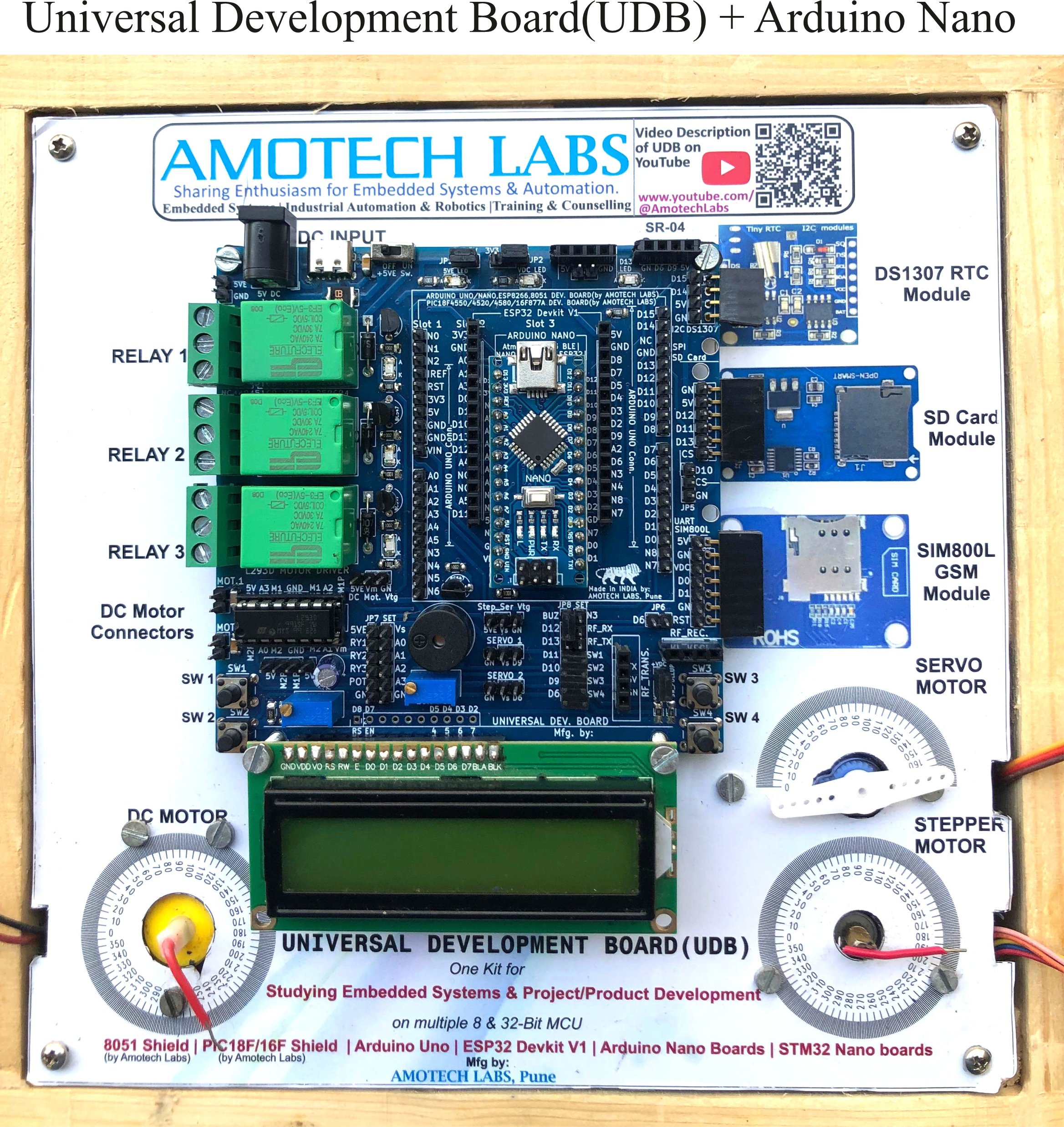

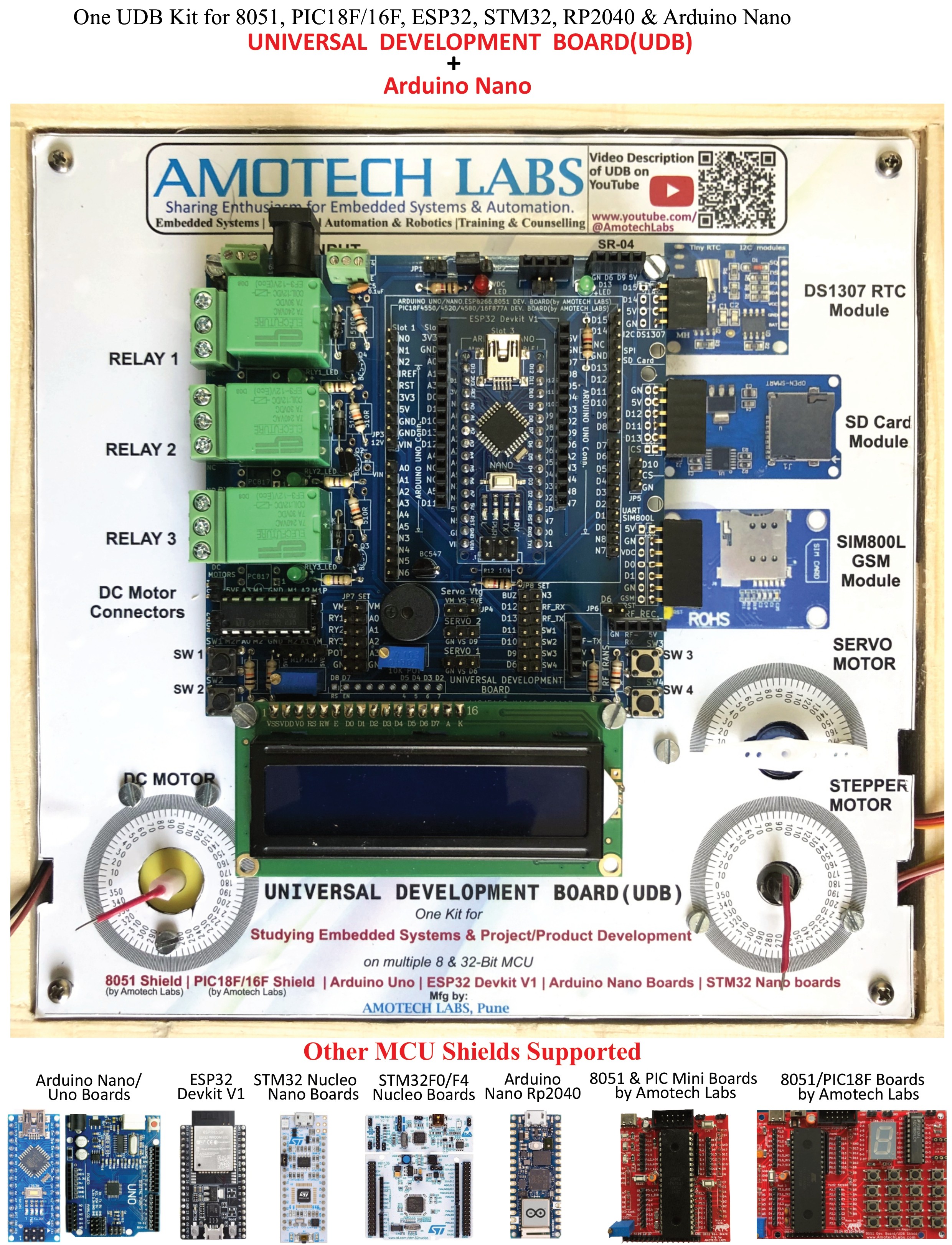

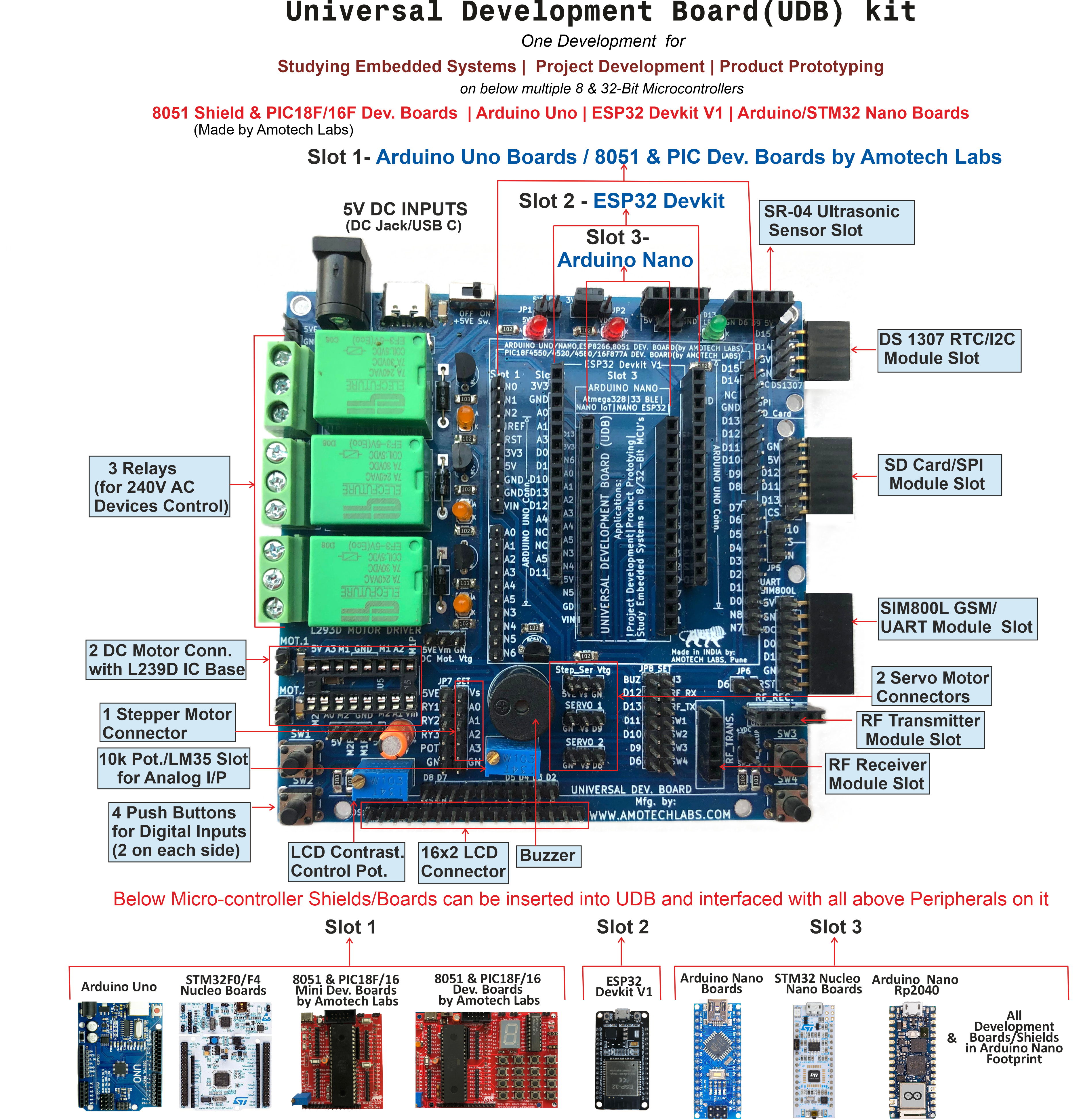

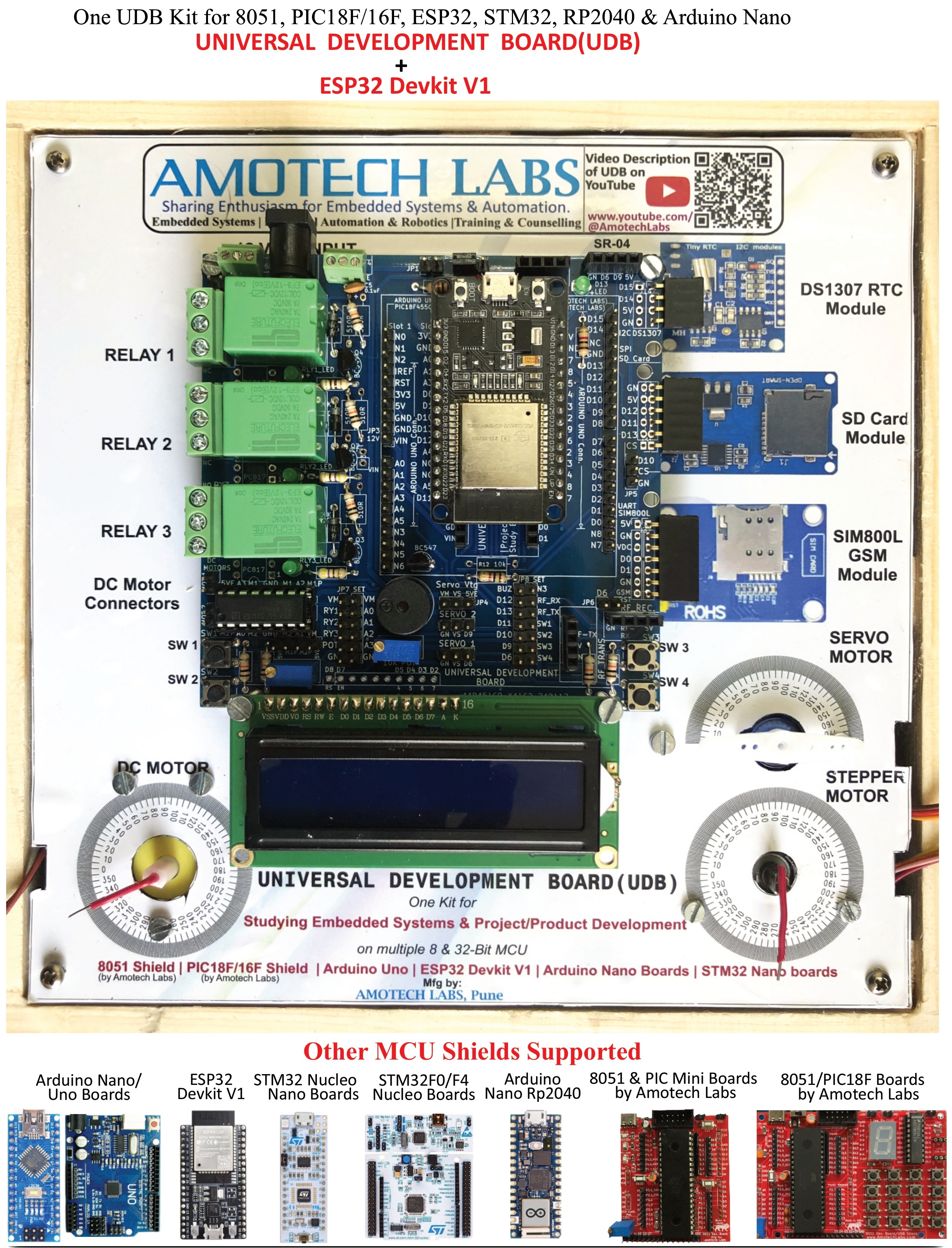

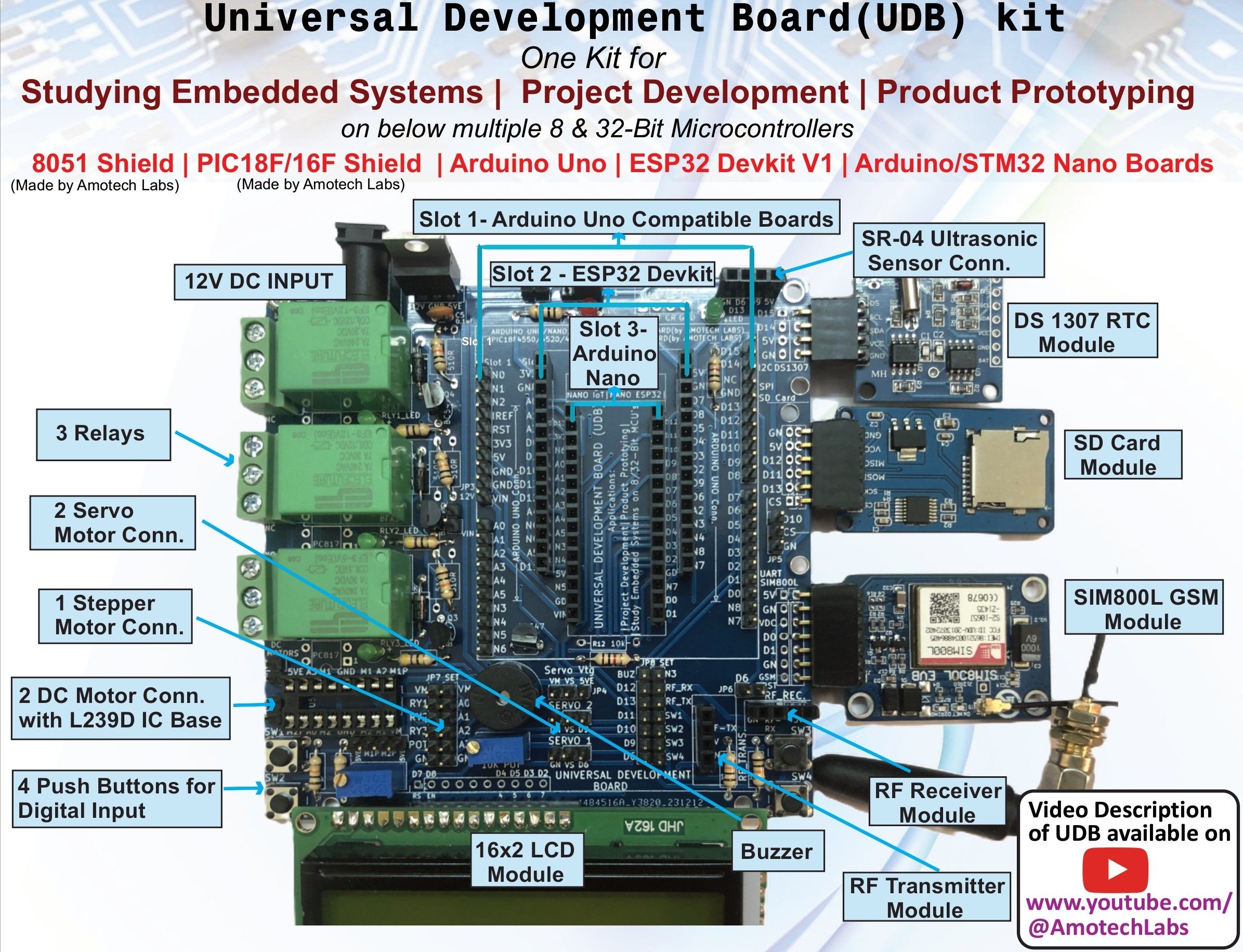

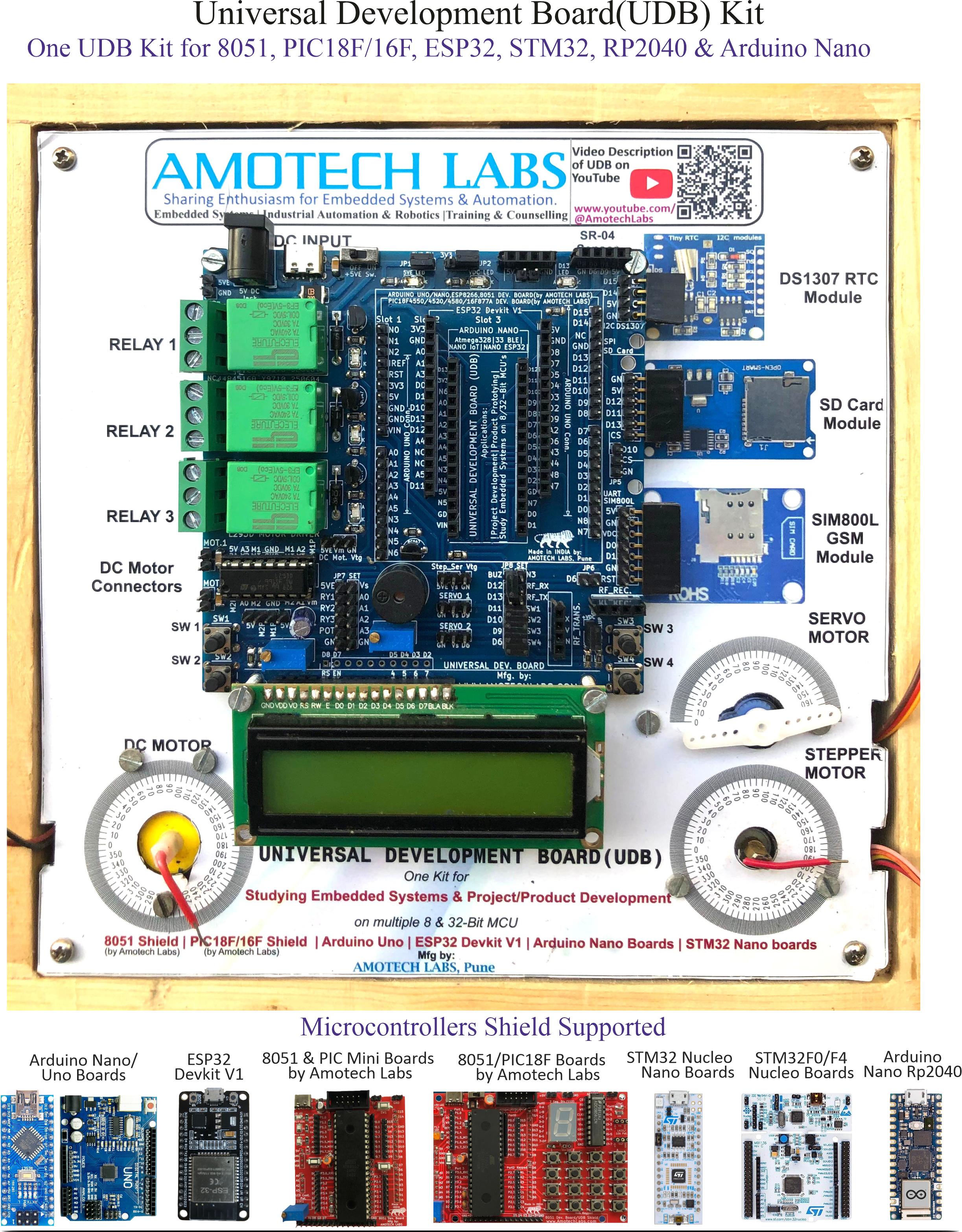

Universal Development Board Kit by Amotech Labs is a Single Development Board for Multiple Microcontrollers like 8051, PIC18F/16F MCUs, ESP32, Arduino Nano and STM32 series modules. It is enclosed in Wooden box and specially designed for College Practical labs for the use of Students. It has below on-board features which can be used with all the MCUs which can be attached with it:


1. LCD connector - It can be used to connect 16x2, 20x4 LCD Displays.

2. 4 Digital Input Buttons.

3. Relay(3 Units) which can be connected to  Digital Pins of attached MCU using the Jumper.

4. Port I/O pins connectors for the attached MCU

5. 4x4 Keypad

6. Provision to insert 10k Potentiometer or LM35 Temperature Sensor for Analog Input.

7. L293D Motor Driver IC slot along with connectors for 2 DC Motors. It can be used to make Robot Car chasis.

8. Buzzer on-board.

9. Servo Motor connectors for connecting 2 Servo Motors.

10. Stepper Motor connector to connect a 1 Stepper Motor.

11. Protector Angle marking to track precise control of Servo, Stepper and DC Motors.

12. RF Transmitter and Receiver connecting slot for developing Wireless RF Control Applications.

13.  SIM800L GSM module connecting slot for developing GSM based IoT Applications.

14. SD Card connecting slot for developing Data Logging Application.

15. DS1307 RTC connecting slot for developing Real Time Clock based Applications.

16. SR-04 Ultrasonic obstacle Distance measuring slot to connect and interface SR-04 sensor with the attached MCU

17.Slot for connecting TJA1050 CAN Module to interface with the attached MCU.

Applications:

  1. Learn Embedded Systems hands-on using multiple Microcontrollers on a single kit.

  2. Conduct Microcontroller courses Lab Practicals for multiple MCU courses on a single UDB kit.

  3. Develope Academic Projects on multiple MCUs using UDB

  4. Learning core professional Embedded compilers like 'KEIL IDE', STMCubeIDE and ESP-IDF using respective MCU with UDB

  5.  Prototyping of professional Embedded Product development using 'Universal Development Board'.

  6. Develop commercial Embedded Solution using UDB on multiple MCUs.

  7. Develop Robot Car chasis projects using UDB with multiple MCUs.
