PIC18F/16F Mini Development Board(Without IC & LCD)

₹550.00₹450.00

Out of stock

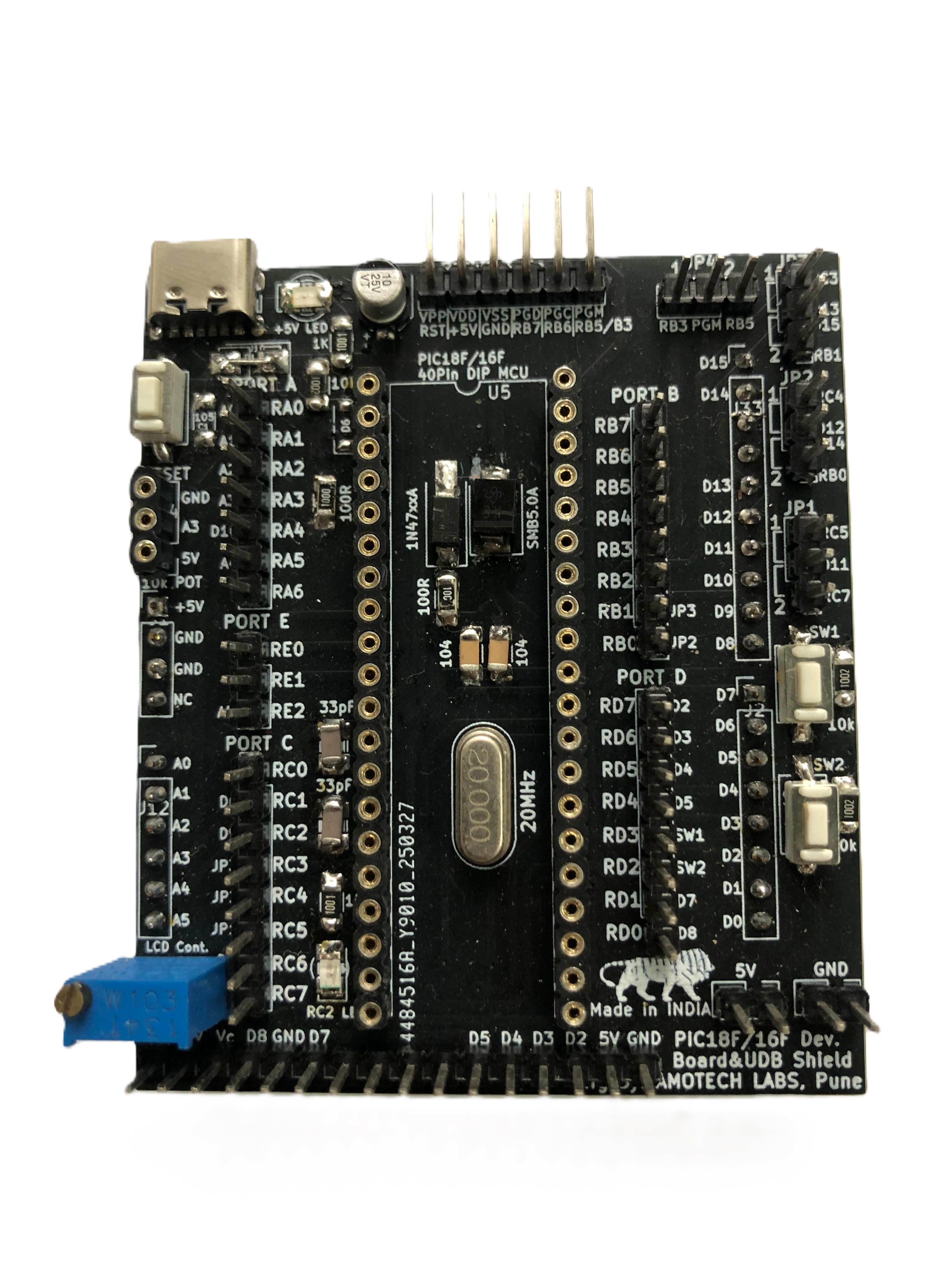

PIC18F/16F Mini Development Board by Amotech Labs is specially designed for Students and Professionals who want to Study PIC18F/16F series Micro-controllers hands-on. It is small Arduino Uno size low cost Development Board which can be used for all PIC18F/16F based 40-pin DIP Micro-controllers such as PIC18F452, PIC18F458,PIC18F4550, PIC16F877A, PIC16F887  and many more PIC18F/16F series 40 pin DIP IC's. It can be programmed using 'PIC Kit 3/3.5' Programmers.

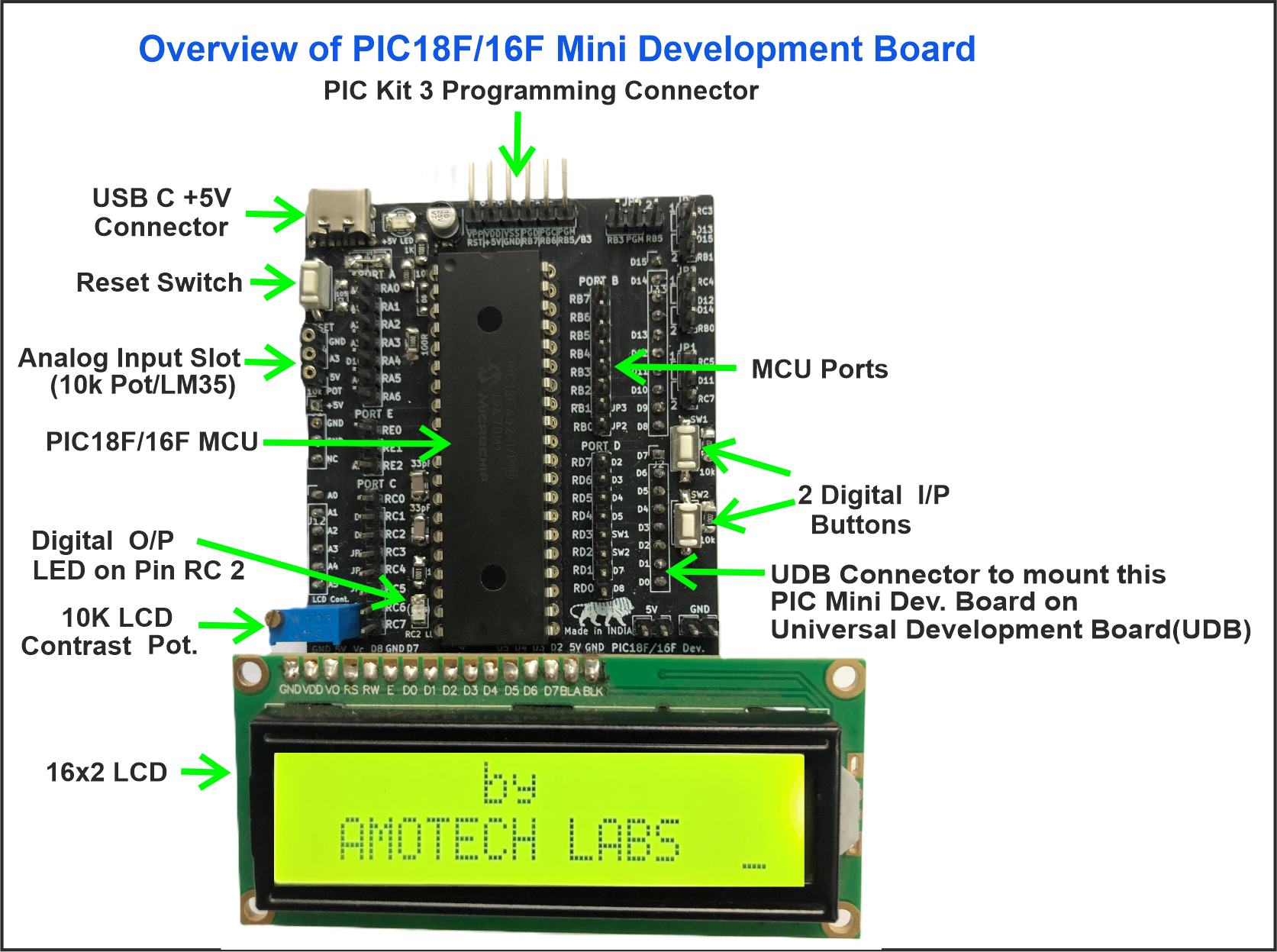

It has below on-board features:
1. LCD connector - It can be used to connect 16x2, 20x4 LCD Displays.

2. With on-board 2 Digital Input Buttons.

3. With on-board 2 Output LED's connected to  Digital Pins.

4. Connector for 10K Potentiometers and LM35 to feed variable Analog Signal at Analog Input pin.

4. Port I/O pins connectors

5. Can be powered using Mobile Phone +5V Chargers with USB C Power Cable.

6. This PIC Mini Dev. Board can be mounted on 'Universal Development Board(UDB)' after which it can be interfaced with below other peripherals:
     1. Relays to control 230V AC devices(3 Relays).

     2. Digital I/P buttons (4 I/P button)

     3. Buzzer, Analog Input Slot for 10k Pot./LM35 sensor.

     4. Motor: 2 DC Motors, 2 Servo Motors and 1 Stepper Motor

     5. SIM800L GSM Module/Any other GSM Module,

     6. Other Modules: SD Card, DS1307 RTC, RF Transmitter & Receiver, TJA1050 CAN Module and SR-04 Ultrasonic Sensor.

Applications:

  1. Learn 'PIC Micro-controller and Embedded Systems' subjects hands-on.

  2. Develop Academic Projects.

  3. Prototyping of PIC Micro-controller based Industrial Projects/Products.

  4. Learning core professional Embedded compilers like 'MPLab X IDE' with PIC18F/16F Mini Development Board

  5.  It can be attached with 'Universal Development Board(UDB)' to use Relays, L293D Motor driver IC, switches, GSM Module and many other peripherals interfaced with it. With UDB, it can be used for developing Academic Projects, Embedded Product Prototyping, Robot Chassis programming with PIC MCU using 2 DC Motors on UDB and many more potential applications.
