PIC18F/16F Development Board Kit
(With PIC18F452 IC + LCD 16x2 Display Included)
₹2500.00₹2200.00
Out of stock

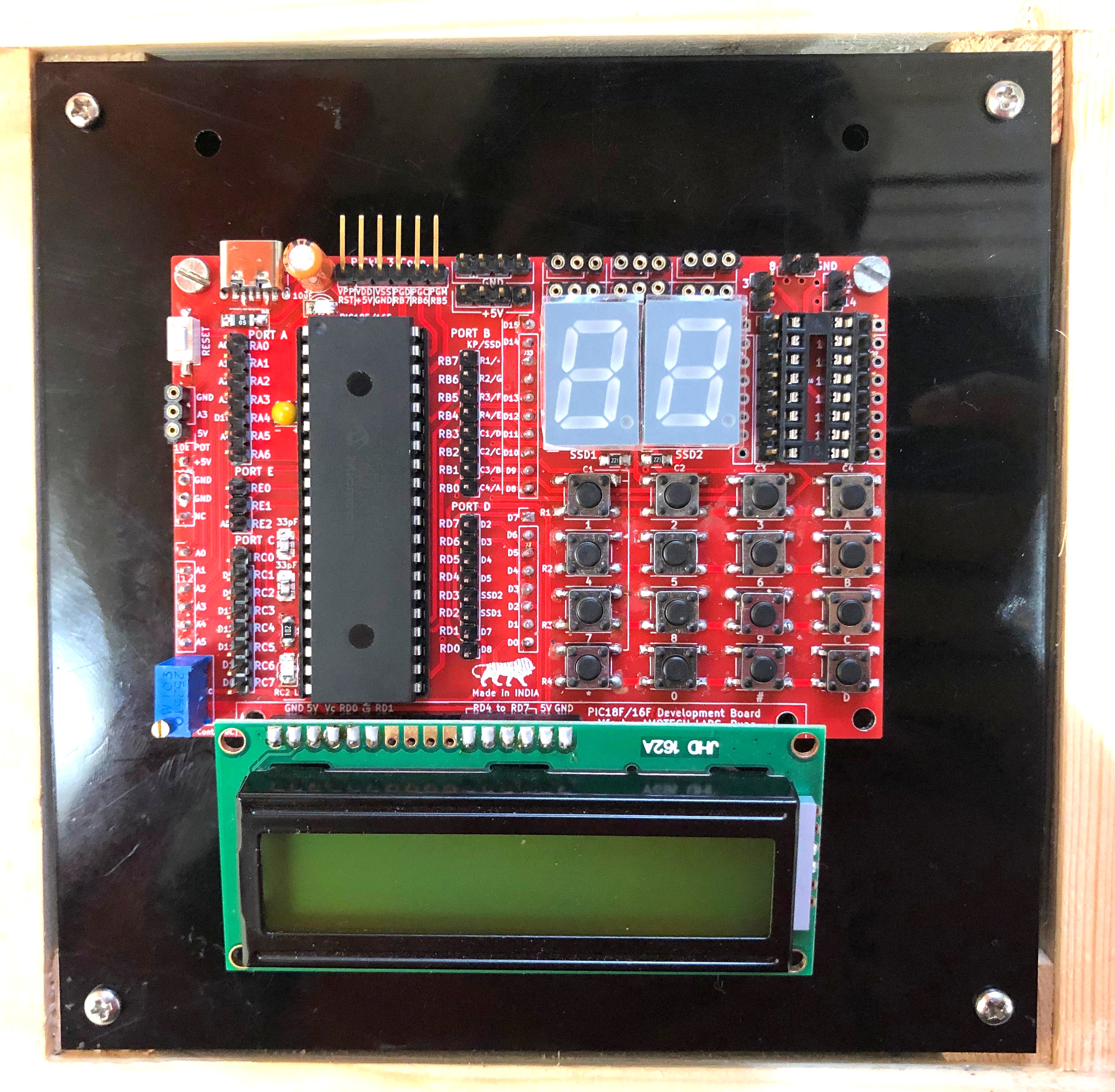

PIC18F/16F Development Board Kit in a Wooden box Enclosure by Amotech Labs is specially designed for College Practical Lab use to study and build Projects/Products on PIC18F/16F series Micro-controllers. It is a low-cost Development Board which can be used for all PIC18F/16F-based 40-pin DIP Micro-controllers such as PIC18F452, PIC18F458, PIC18F4550, PIC16F877A, PIC16F887, and many more PIC18F/16F series 40-pin DIP ICs. It can be programmed using 'PIC Kit 3/3.5' Programmers.

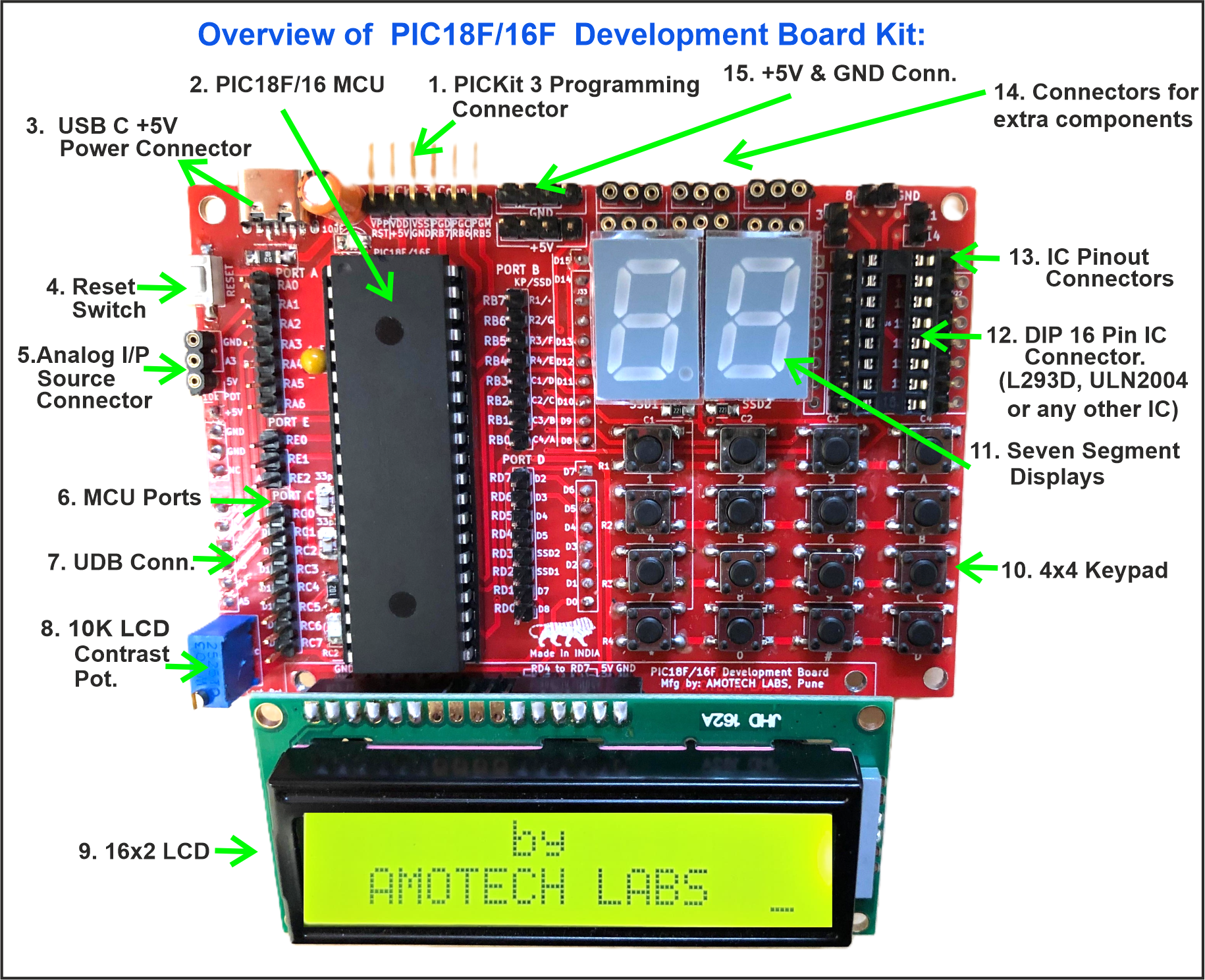

It has below on-board features:
1. LCD connector - It can be used to connect 16x2, 20x4 LCD Displays.
2. With on-board PIC18F452 IC, 16x2 LCD Display, and 4x4 Keypad.
3. With on-board 2 Output Seven Segment Displays.
4. Connector for 10K Potentiometers and LM35 to feed a variable Analog Signal at the Analog Input pin.
4. Port I/O pins connectors for accessing each Pin of the PIC18F/16F IC inserted into the board .
5. Can be powered using Mobile Phone +5V Chargers with USB-C Power Cable.
6. It has an on-board 16-DIP IC slot with its individual pin connectors. This slot can be used for L293D, ULN2004, or any other ICs interfacing.
7. This 'PIC18F/16F Development Board' can be mounted on the 'Universal Development Board(UDB)' after which it can be interfaced with below other peripherals:
1. Relays to control 230V AC devices(3 Relays).
2. Digital I/P buttons (4 I/P button)
3. Buzzer, Analog Input Slot for 10k Pot/LM35 sensor.
4. Motor: 2 DC Motors, 2 Servo Motors, and 1 Stepper Motor
5. SIM800L GSM Module/Any other GSM Module,
6. Other Modules: SD Card, DS1307 RTC, RF Transmitter & Receiver, TJA1050 CAN Module and SR-04 Ultrasonic Sensor.
Applications:
Learn 'PIC Microcontroller and Embedded Systems' subjects hands-on.
Develop Academic Projects.
Prototyping of PIC Microcontroller-based Industrial Projects/Products.
Learning core professional Embedded compilers like 'MPLab X IDE' with PIC18F/16F Mini Development Board
It can be attached to the 'Universal Development Board(UDB)' to use Relays, L293D Motor driver IC, switches, GSM Modules, and many other peripherals interfaced with it. With UDB, it can be used for developing Academic Projects, Embedded Product Prototyping, Robot Chassis programming with PIC MCU using 2 DC Motors on UDB, and many more potential applications.
