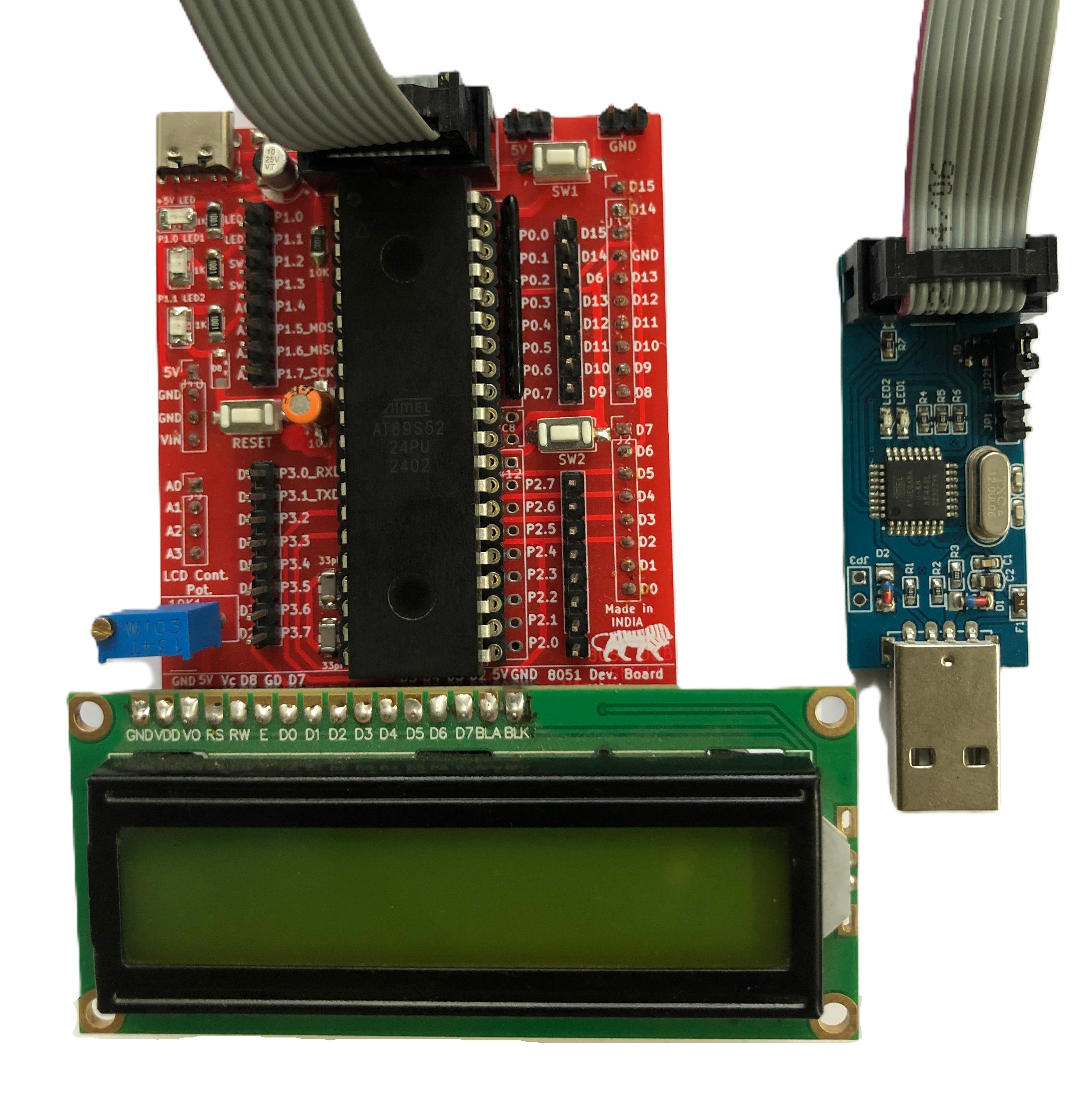

8051 Mini Development Board(With IC, Programmer & LCD included )
(With 89S52 IC, ISP Programmer and 16x2 LCD included)
₹1000.00₹950.00
Out of stock

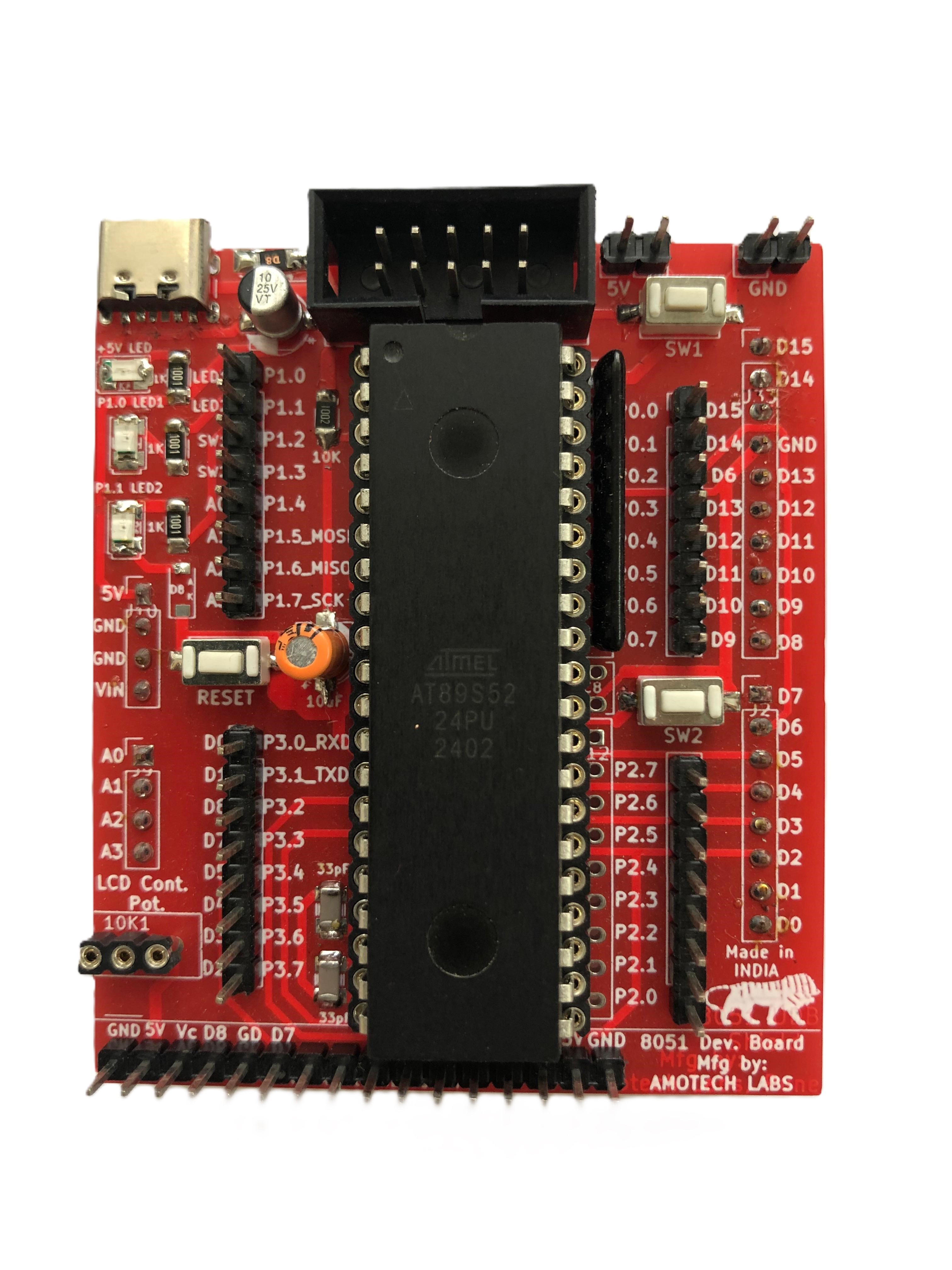

8051 Mini Development Board by Amotech Labs is specially designed for Students and Professionals who want to Study 8051 Micro-controllers hands-on. It is small Arduino Uno size low cost Development Board which can be used for all 8051 based 40-pin DIP Micro-controllers such as 89S52, 89C51 and many more IC's. It can be programmed using 'ISP USB Programmer'.

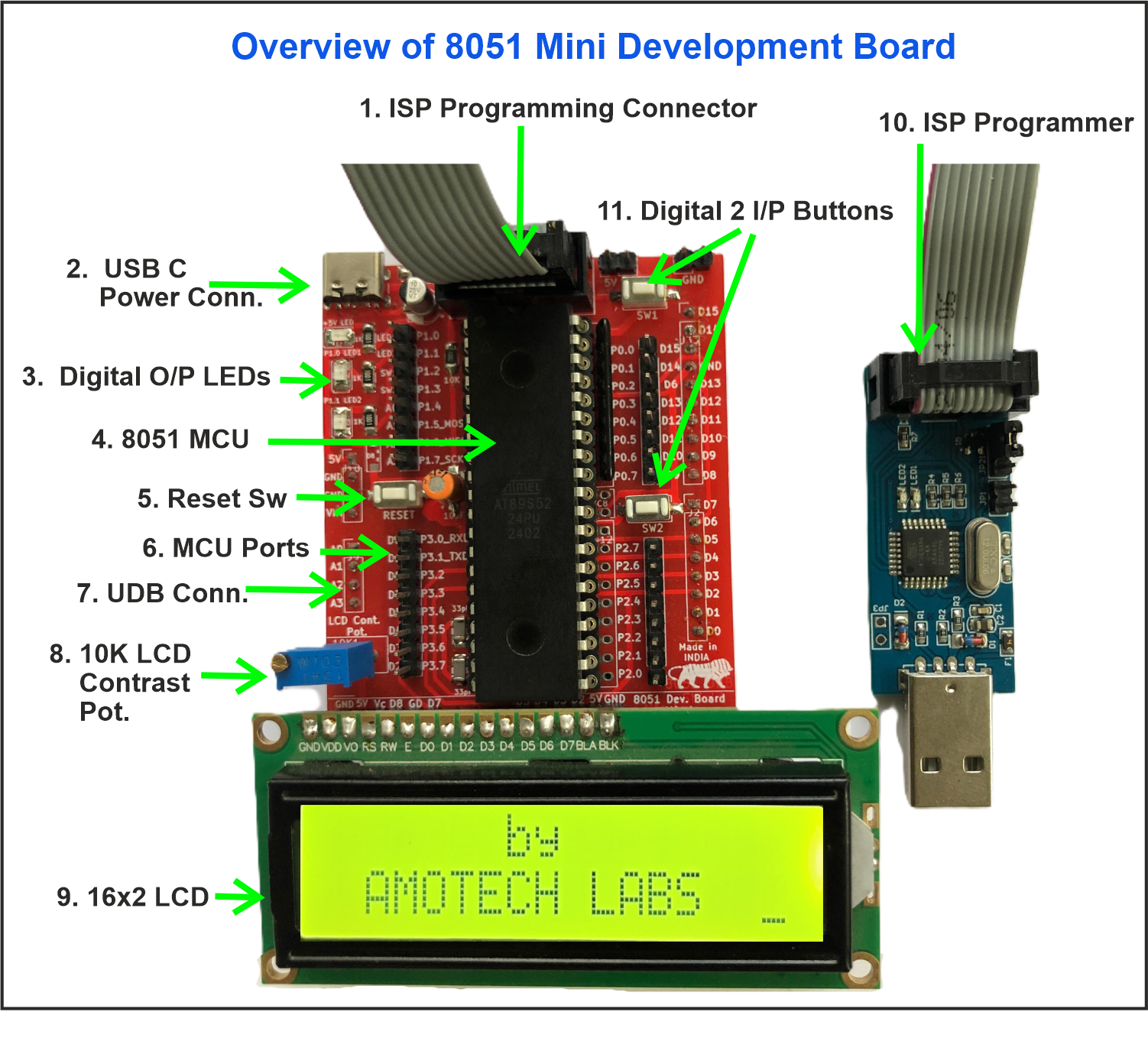

It has below on-board features:
1. LCD connector - It can be used to connect 16x2, 20x4 LCD Displays.
2. With on-board 2 Digital Input Buttons.
3. With on-board 2 Output LED's connected to Digital Pins.
4. Port I/O pins connectors
5. Can be powered using Mobile Phone +5V Chargers with USB C Power Cable.

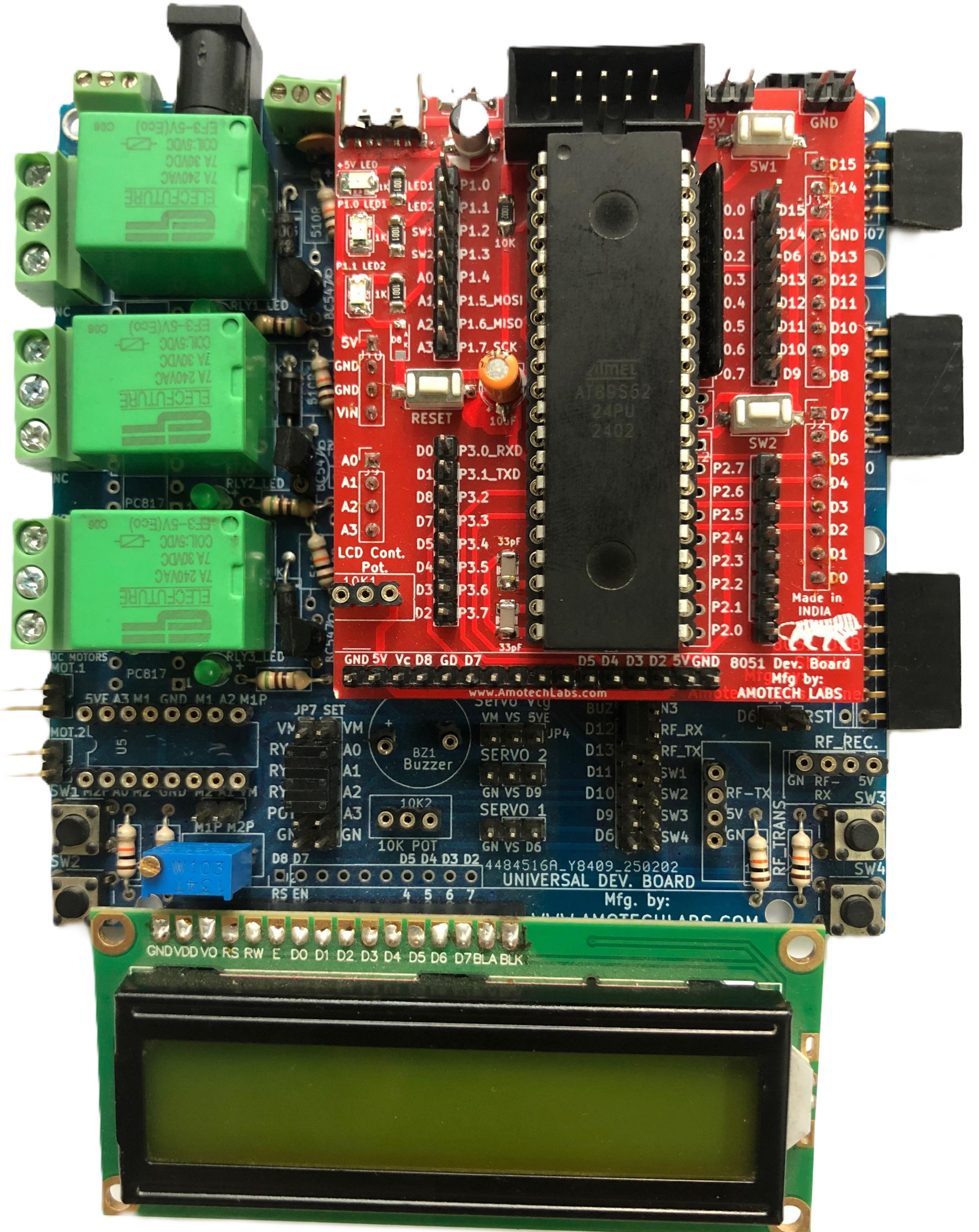

6. This 8051 Mini Dev. Board can be mounted on 'Universal Development Board(UDB)' after which it can be interfaced with below other peripherals:
1. Relays to control 230V AC devices(3 Relays).
2. Digital I/P buttons (4 I/P button)
3. Buzzer, Analog Input Slot for 10k Pot./LM35 sensor.
4. Motor: 2 DC Motors, 2 Servo Motors and 1 Stepper Motor
5. SIM800L GSM Module/Any other GSM Module,
6. Other Modules: SD Card, DS1307 RTC, RF Transmitter & Receiver, TJA1050 CAN Module and SR-04 Ultrasonic Sensor.
Applications:
Learn '8051 Micro-controller and Embedded Systems' hands-on.
Develop Academic Projects.
Prototyping of 8051 based Industrial Projects
Learning core professional Embedded compilers like 'KEIL IDE' with 8051 Mini Development Board
It can be attached with 'Universal Development Board(UDB)' to use Relays, L293D Motor driver IC, switches, GSM Module and many other peripherals interfaced with it. With UDB, it can be used for developing Academic Projects, Embedded Product Prototyping, Robot Chassis programming with 8051 MCU using 2 DC Motors on UDB and many more potential applications.
