8051 Development Board + 89S52 IC + ISP USB Programmer + LCD Display include

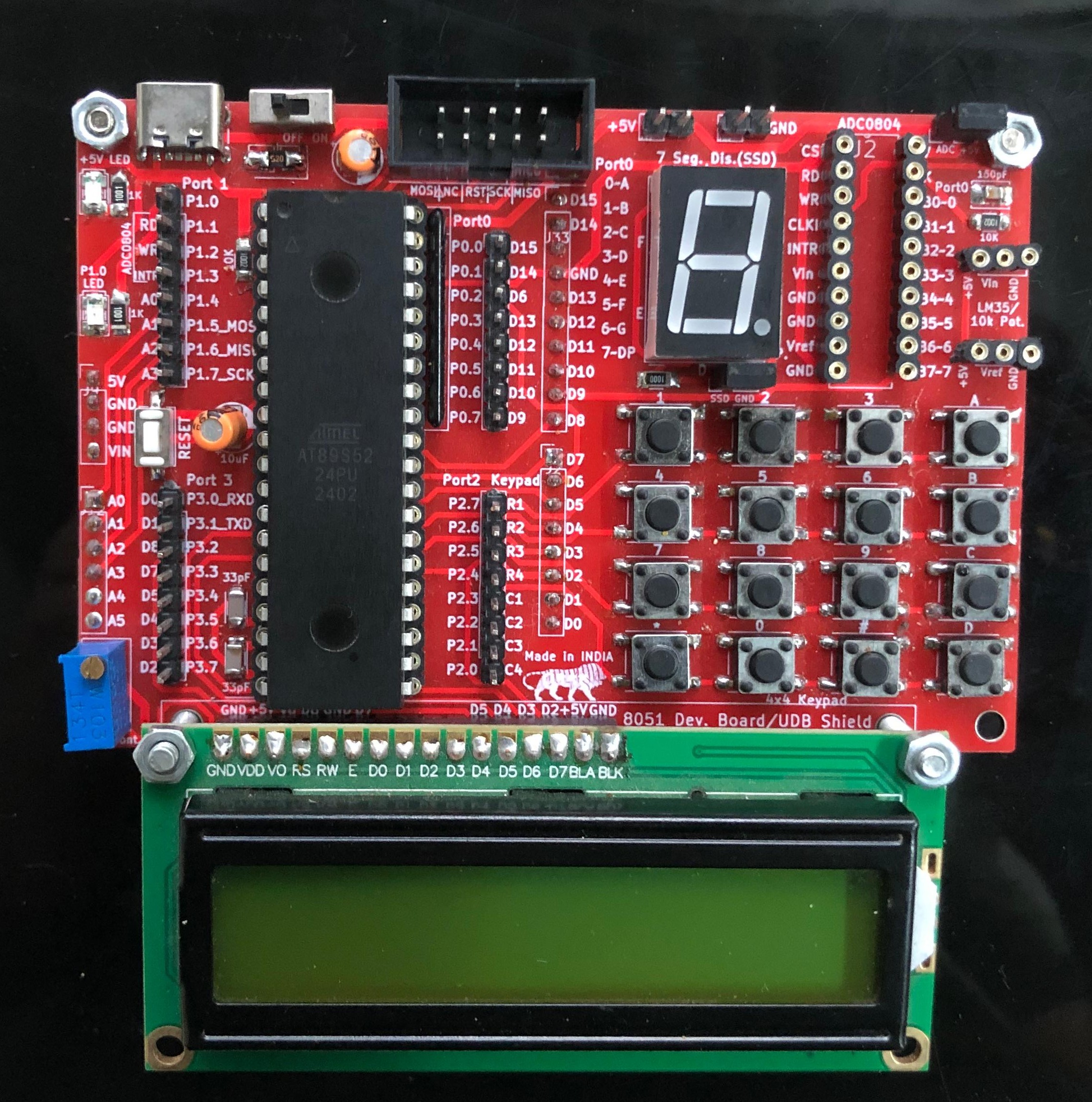

8051 Development Board Kit by Amotech Labs is enclosed in Wooden box and specially designed for College Practical labs for the use of Students. It has on-board 4x4 Keypad and ADC0804 IC slot and can be used for all 8051 based 40-pin DIP Micro-controllers such as 89S52, 89C51 and many more IC's. It can be programmed using 'ISP USB Programmer'.

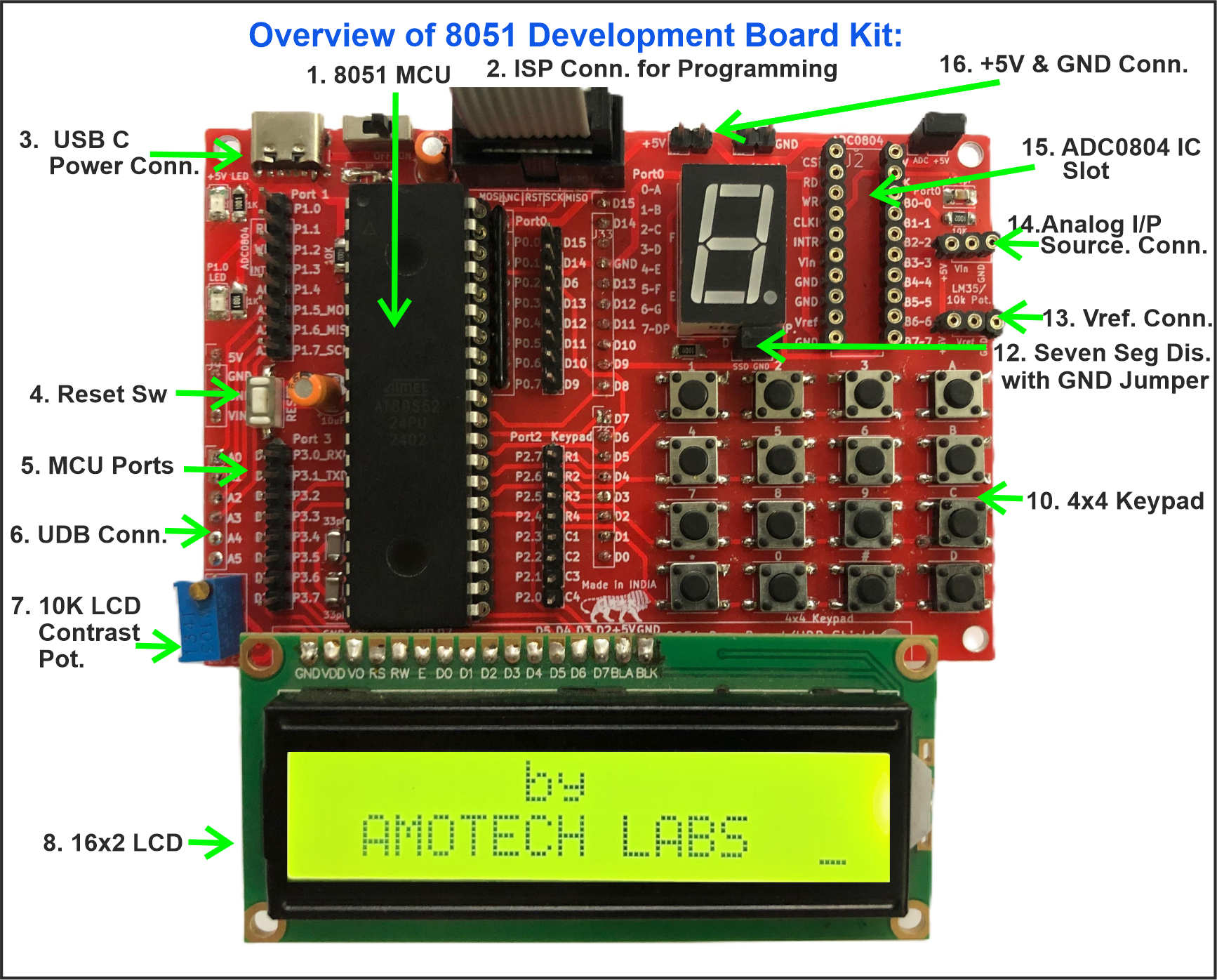

It has below on-board features:
1. LCD connector - It can be used to connect 16x2, 20x4 LCD Displays.

2. With on-board 2 Digital Input Buttons.

3. With on-board 2 Output LED's connected to  Digital Pins.

4. Port I/O pins connectors

5. With on-board 4x4 Keypad

6. With on-board ADC0804 IC circuit along provision to insert 10k Potentiometer or LM35 Temperature Sensor for Analog Input.

7. Can be powered using Mobile Phone +5V Chargers with USB C Power Cable.

8. Connector Headers in Arduino footing to connect it to 'Universal Development Board' to develop any prototype/academic project.

Applications:

1. Learn '8051 Micro-controller and Embedded Systems' hands-on.

2. Develop Academic Projects.

3. Prototyping of 8051 based Industrial Projects

4. Learning core professional Embedded compilers like 'KEIL IDE' with 8051 Mini Development Board

5.  It can be attached with 'Universal Development Board' to use Relays, L293D Motor driver IC, switches, GSM Module and many other peripherals interfaced with it.
